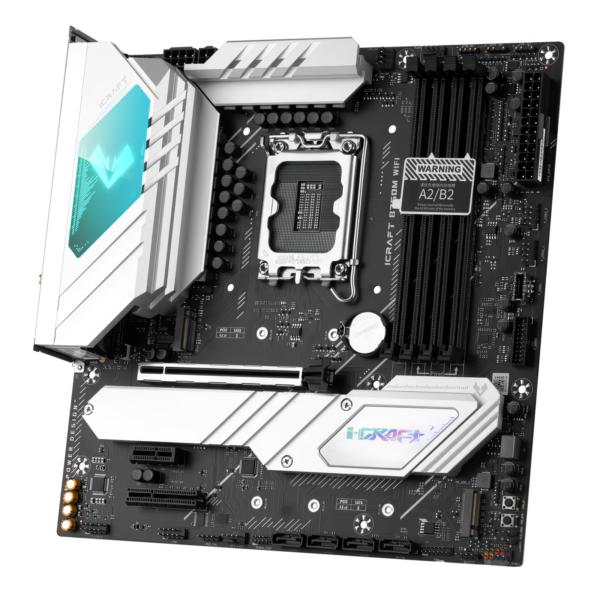

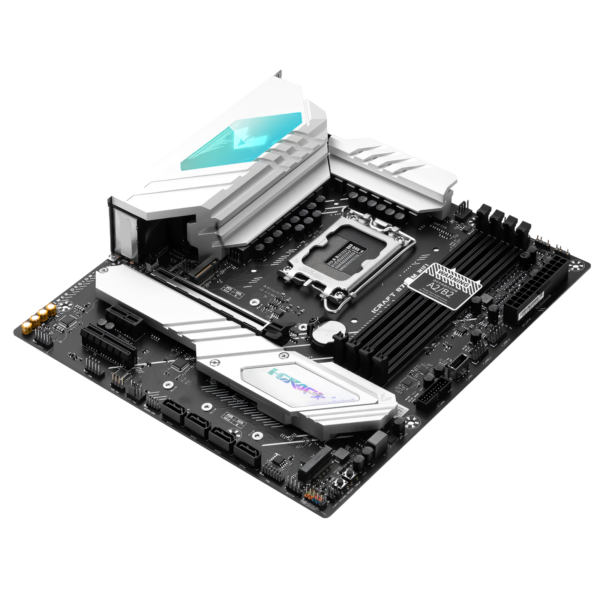

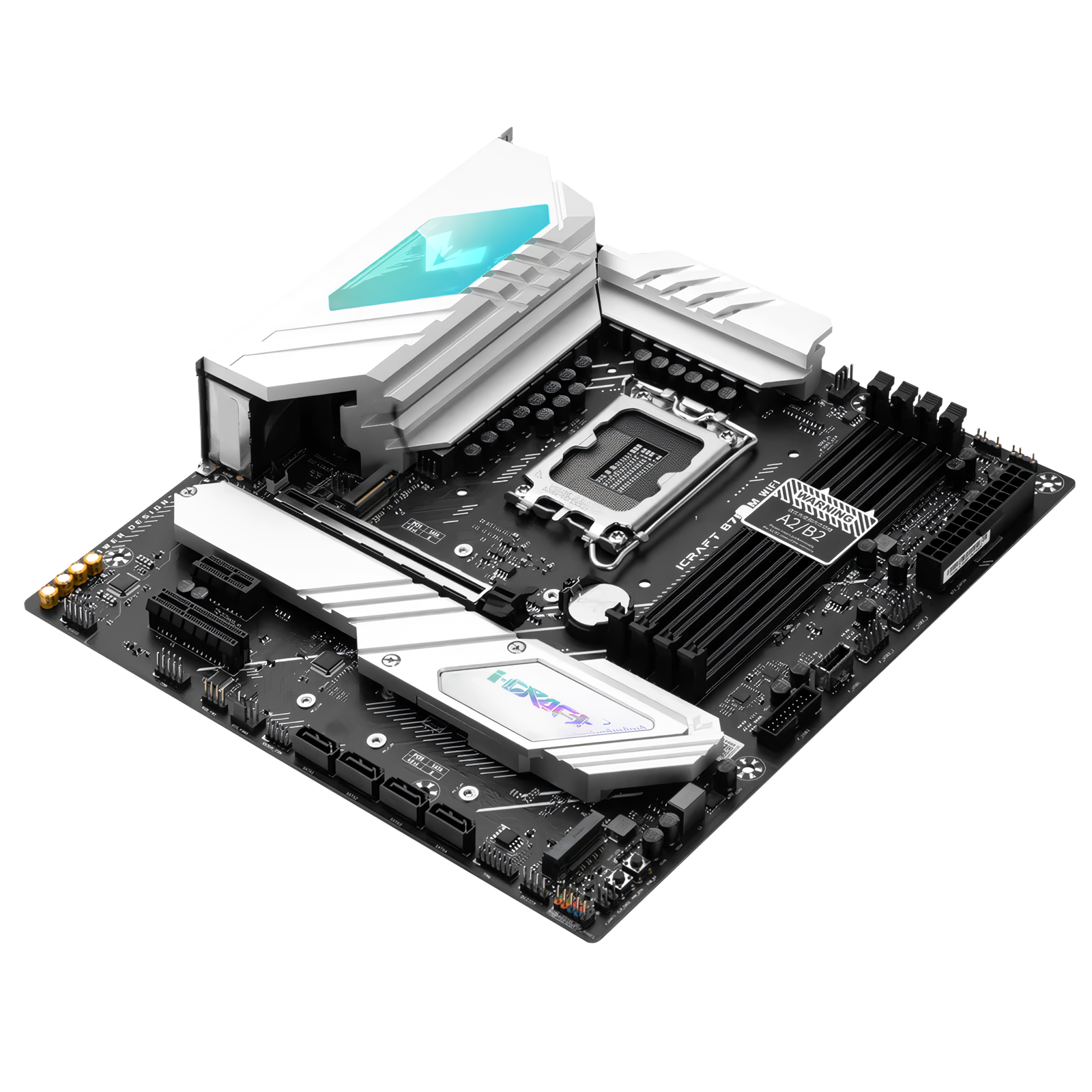

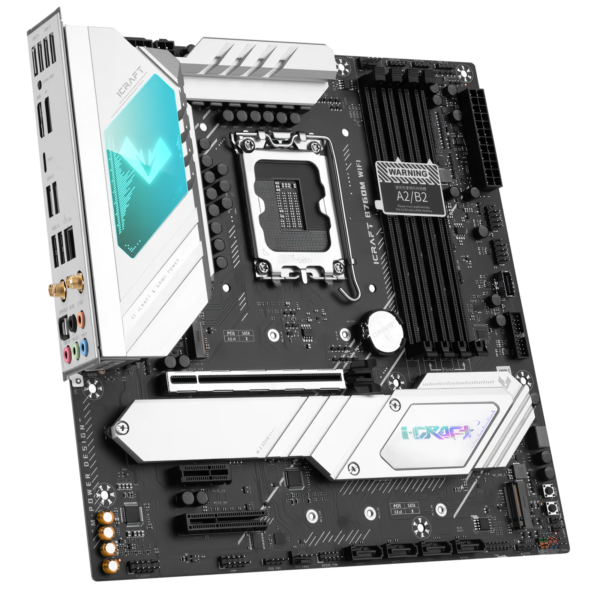

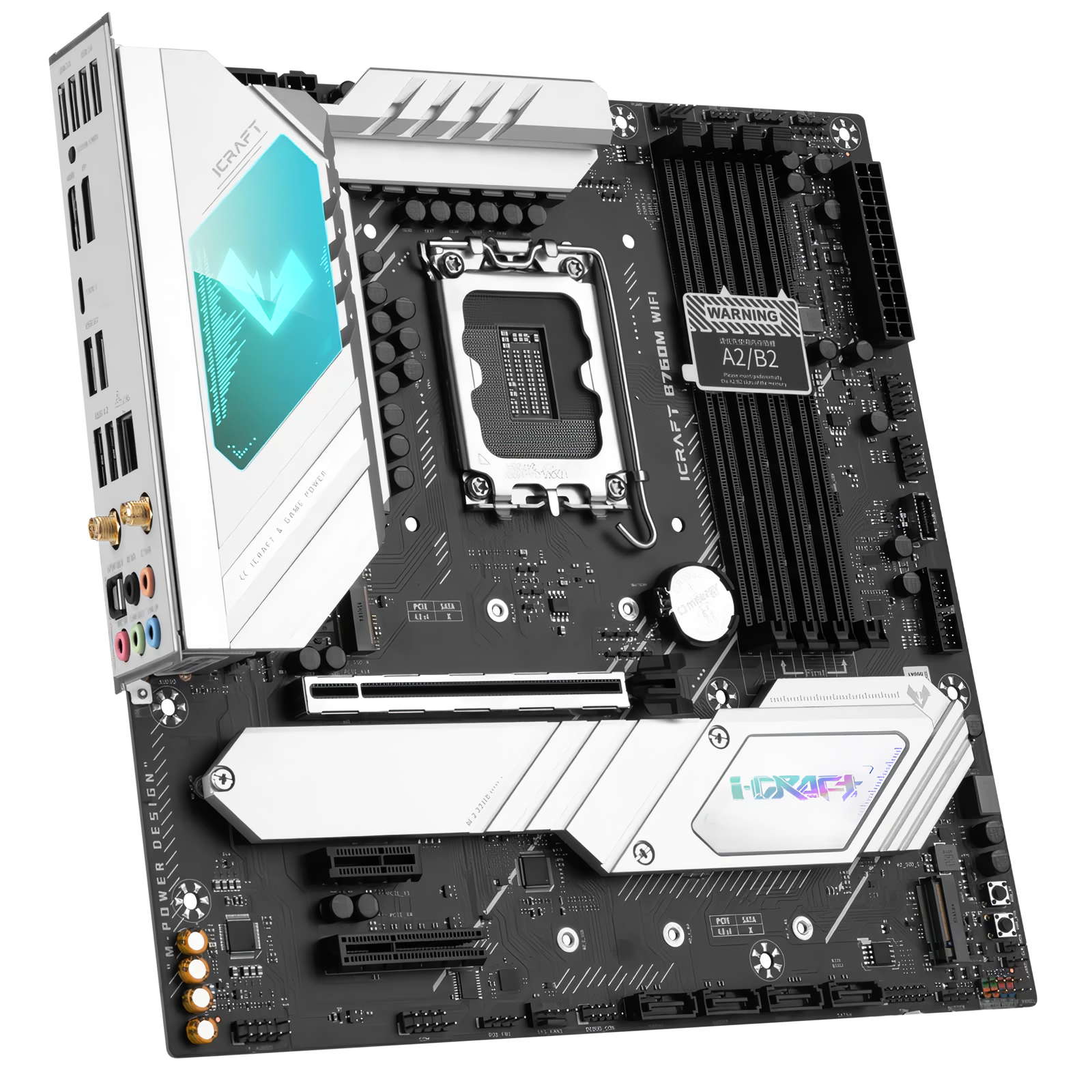

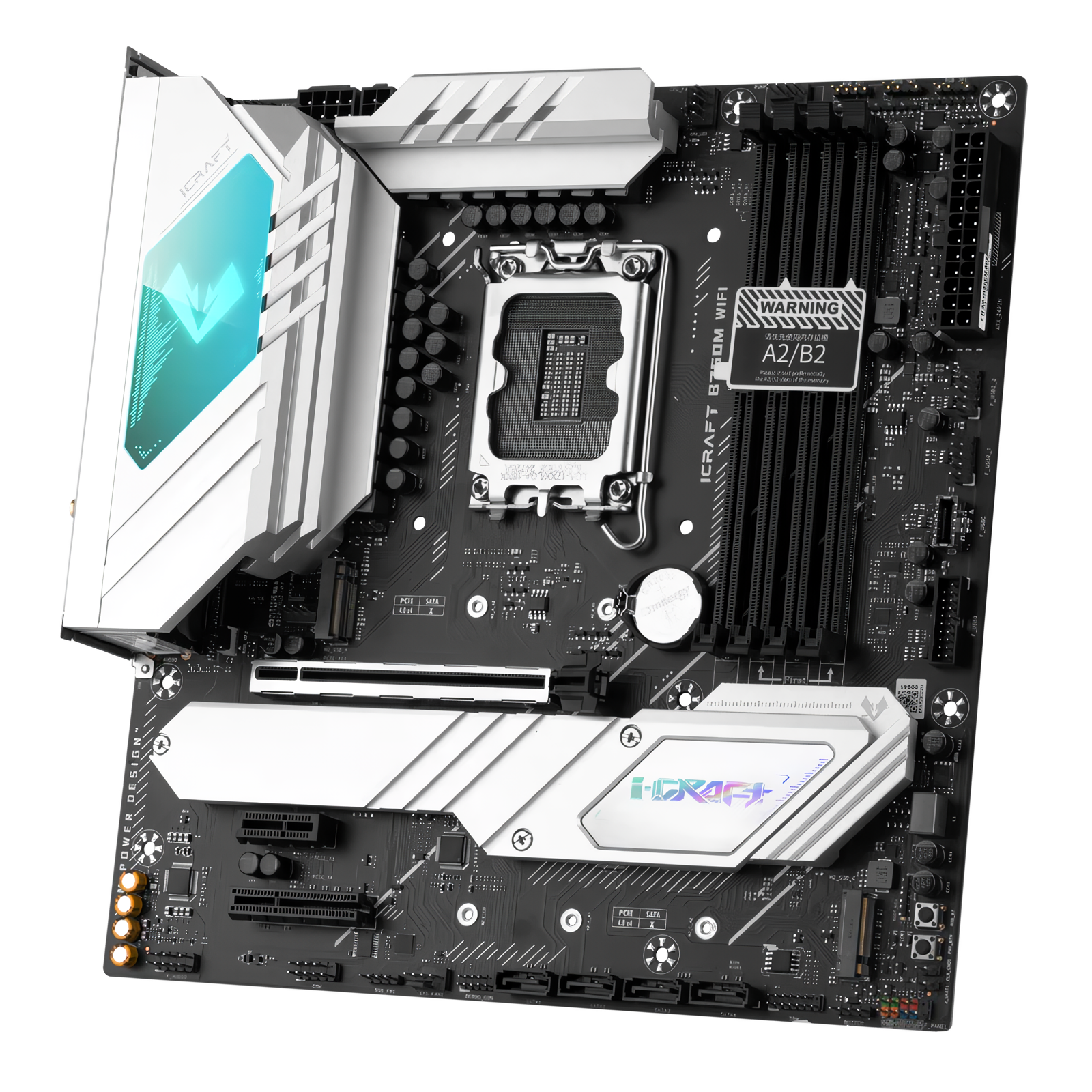

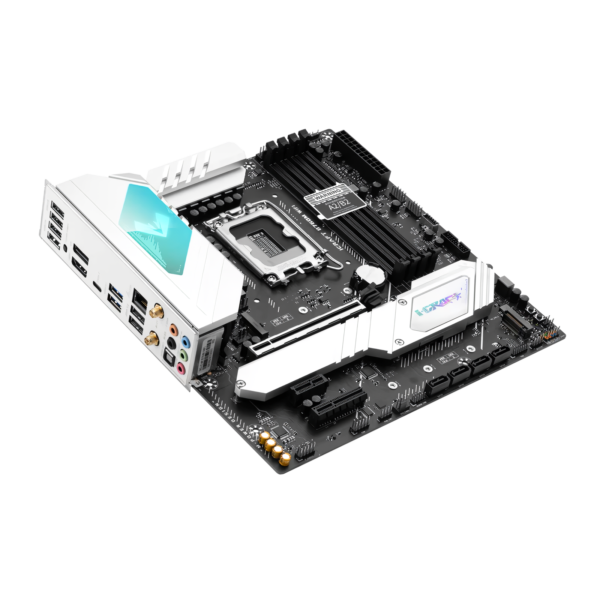

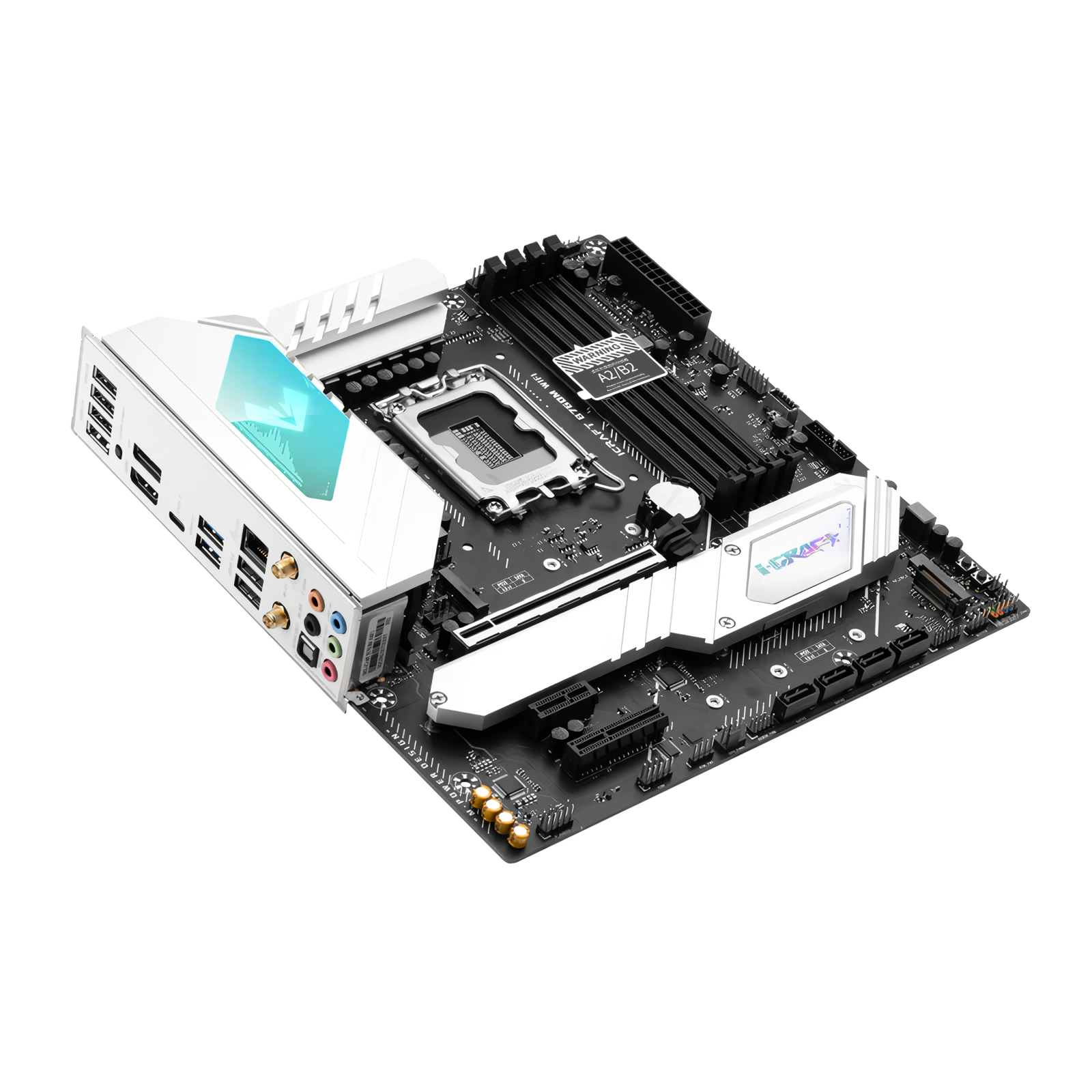

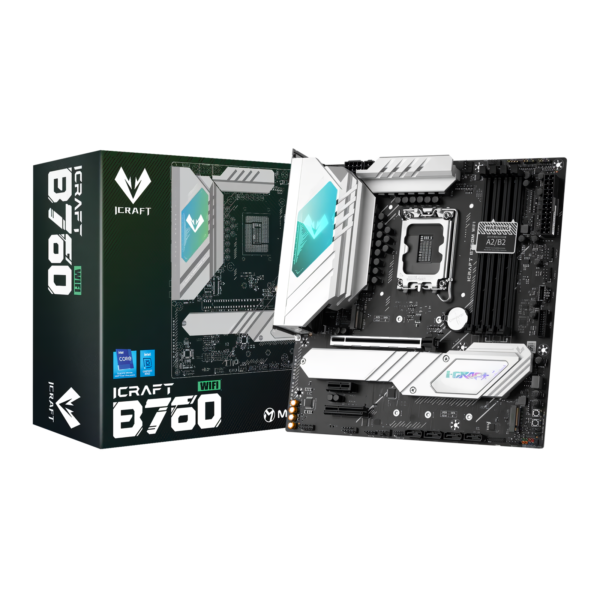

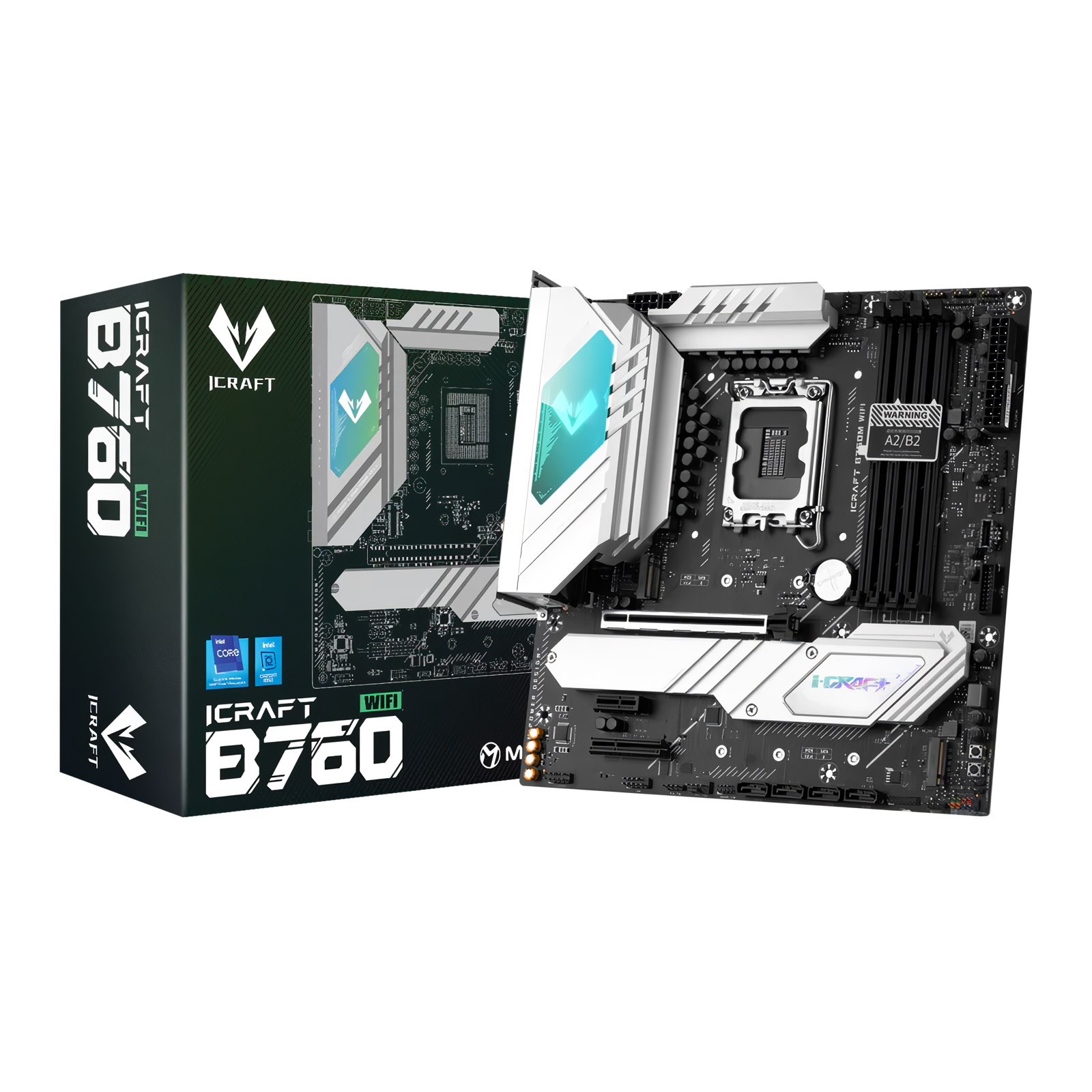

KYO SOYO iCRAFT B760 WIFI
Rp2.350.000,00
iCraft B760M WIFI
CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
ONBOARD GRAPHICS 1x DisplayPort 1.4
1x HDMIport
*HDMI port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
| Brand | : KYO SOYO |
|---|---|
| Model | : iCRAFT B760 |
| Chipset Brand | : Intel |
| Chipset | : Intel B760 |
| Memory Type | : DDR5 |
| Cpu Socket | : CPU Supports 12th/13th Gen Intel Core Processors | Pentium Gold and Celeron Processors LGA 1700 |
| Memory | : 4x DDR5 | Max Capacity 192GB | Support : 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Display | : 1x DisplayPort 1.4 | 1x HDMIâ„¢port *HDMIâ„¢ | port supports up to 4K@30Hz |
| Expansion Slots | : 1x PCIe 5.0 x16 slot | 1x PCIe 3.0 x4 slot | 1x PCIe 3.0 x1 slot |
| Storage | : Slot 1 : M.2 (Key M), Type 2242/2280 (PCIe 4.0 x4) | Slot 3 : M.2 (Key M), Type 2242/2280/22110 (PCIe 4.0 x4) | Slot 2 : M.2 (Key M), Type 2242/2280/22110 (PCIe 4.0 x4) | 4 x SATA 6Gb/s ports |
| Raid | : Supports RAID 0 | RAID 1 | RAID 5 and RAID 10 for SATA storage devices |
| Usb | : *Front USB (Total 7 ports) | 1x USB 3.2 Gen1 Type C (10Gbps) | 2x USB 3.2 Gen1 Type A | 4x USB 2.0 | *Rear USB (Total 9 ports) | 1x USB 3.2 Gen2 Type C (20Gbps) | 4x USB 3.2 Gen1 Type A | 4x USB 2.0 |
| Lan | : Realtek® RTL8125BG 2.5G LAN |
| Wireless Bluetooth | : Intel® Wi-Fi 6E AX211 |The Wireless module is pre-installed in the M.2(Key-E) slot |Supports MU-MIMO TX/RX,2.4GHz/5GHz/6GHz*(160MHz) 2.4Gbps |Supports 802.11 a/b/g/n/ac/ax |Supports Bluetooth 5.3 |
| Audio | : Realtek® ALC897 Codec | 7.1-Channel High Definition Audio | Supports S/PDIF output |
| Internal I O 1 | : 1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin BUZZER |
| Internal I O 2 | : 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x RGB Button 1x POWER Button |
| Led Feature | : 4x Distributed Debug LED |
| Operating System | : Support for Windows® 11 64-bit | Windows® 10 64-bit |
| Motherboard Size | : M-ATX ( 245 x 245mm) |
| Warranty | : 3-year limited warranty |
